NWAQualityAnalyst?是一款屢獲殊榮的SPC圖表和分析軟件解決方案，可提供任何SPC軟件的強大功能，靈活性和易用性的最佳組合。它使廣泛的用戶能夠以圖形方式分析流程行為，并通過最少的統計技術培訓來判斷流程改進決策的影響。

化學

石油和天然氣

生命科學

打包

物料

餐飲

分析與解決問題的力量

 NWA質量分析師將易學性和使用與廣泛的分析和解決問題的能力結合在一起。新用戶可以快速開始生成有用的SPC圖表，而嚴肅的工藝工程師可以使用相同的SPC軟件來解決復雜的流程改進問題。

 NWA質量分析師可以輕松地與工廠的其他制造軟件集成，并成功地為整個組織發揮通用SPC分析和流程改進工具的作用。這大大減少了培訓和IT開銷，并產生了更好的結果。NWA質量分析師是成功的質量管理，六西格瑪或持續過程改進計劃的核心軟件。

NWA質量分析師功能

•  完整的SPC圖表:包括變量和屬性控制圖，過程能力分析和基于過程的分析和可視化。

•  數據源集成:與所有標準的ODBC兼容數據庫集成，包括過程歷史記錄，LIMS和MES。

•  例外報告:可以將報告配置為根據規范，SPC和模式規則違規顯示異常。包括集成的可分配原因/糾正措施記錄。

 【在整個分析和制圖過程中維護上下文，提供一鍵式深入查看任何數據點的詳細信息。】

 【分析技術的全面選擇包括所有標準SPC和過程能力圖表，這些圖表由各種圖形和統計方法支持。】

 【可以組合任何圖表組合以創建以解決方案為中心的報告。】



便于使用

 NWA Quality Analyst將全面的圖表和分析功能與交互式操作相結合，將您的數據轉化為有價值的信息。NWA質量分析師為易用性而開發，提供：

•  快速，簡單的圖表 - 從開始到圖表只需點擊三次鼠標

•  簡單，直接的數據和圖表設置

•  使用拖放頁面布局顯示和打印多個圖表

•  簡單，向?qū)б龑?dǎo)的自動化

•  直接連接到外部數據庫



功率

 NWA Quality Analyst的操作功能可直接從類似電子表格的用戶界面獲得，提供：

•  從單個屏幕訪問所有配置，圖表和分析功能

•  一套先進的數據管理工具

•  強大的數據結構，允許從單個數據集進行所有圖表和分析

•  用戶定義的計算變量（包括可視化方程構建器），多鍵數據排序和多標準數據過濾

•  彈出窗口，顯示圖表上任何點的描述性特征和規則違規



靈活性

 在為特定分析需求設置圖表時，NWA質量分析師提供無與倫比的靈活性和多功能性。可以使用清晰，邏輯一致的對話框設置用戶首選項。雖然默認設置生成最常用的表單，但可以快速自定義圖表。您可以定義任何圖表以滿足內部，客戶或法規要求，例如：

•  在同一數據集中組合屬性，度量和描述性信息

•  從20多個過程能力指數和8個分布中選擇

•  從19種模式中選擇并運行規則，或創建自己的模式

•  選擇字體，顏色，寬高比和注釋以創建演示質量圖形





穩定性分析

 NWA質量分析師的穩定性分析提供了FDA / ICH指南中所述的常規產品批次穩定性研究和貨架期預測所需的統計過程控制（SPC）分析，圖表和報告。基于ANCOVA的分析符合FDA / ICH指南。



多變量分析

 NWA Quality Analyst的多變量SPC模塊NWA MvSPC?與InfometrixPirouette?相結合，可簡化離線和實時應用的數據收集，模型構建和部署過程。







網絡服務器

 NWA Quality Analyst的Web服務器在整個工廠，企業和供應鏈中協調，標準化和加速流程報告。

Ease of Use

Quality Analyst combines comprehensive charting and analysis capabilities with interactive operation to turn your data into valuable information. Developed for ease of use, Quality Analyst provides:

• Fast, simple charting—from start to chart in as few as three mouse clicks
• Simple, direct data and chart setup
• Multiple chart displays and printing with drag-and-drop page layout
• Easy, wizard-guided automation
• Straightforward connection to external databases

Flexibility

When it comes to setting up charts for specific analytical needs, Quality Analyst offers unmatched flexibility and versatility. User preferences can be set using clear, logical, consistent dialogs. While default settings produce the most commonly accepted form, charts can be quickly customized. You can define any chart to meet internal, customer, or regulatory requirements, for example:

• Combine attribute, measurement, and descriptive information in the same data set
• Select from more than 20 process capability indices and 8 distributions
• Select from 19 pattern and run rules, or create your own
• Choose fonts, colors, aspect ratios, and annotations to create presentation quality graphics

Power

Quality Analyst's operational power is available directly from the spreadsheet-like user interface, providing:

• Access to all configuration, charting, and analytical functions from a single screen
• A suite of advanced data management tools
• A robust data structure allowing all charting and analysis from a single data set
• User-defined calculated variables (including a visual equation builder), multi-key data sorting, and multicriteria data filtering
• Pop-up windows displaying descriptive characteristics and rule violations for any point on a chart

Automation

Automating the charting process is easy with Quality Analyst’s popular “Run file” (scripting) technology. Run files automate virtually all of Quality Analyst’s extensive capabilities. In addition to automatically creating SPC charts, users can select data variables and chart types, specify filter criteria, or even enter new data without running the full Quality Analyst product.

Integration

Quality Analyst integrates with all major manufacturing information systems to serve as the SPC analysis and charting component of an integrated quality information system. The combination of database connectivity and synchronization, Run File automation, and XML output provide the tools necessary to automatically collect, analyze, and report on data from virtually any source.

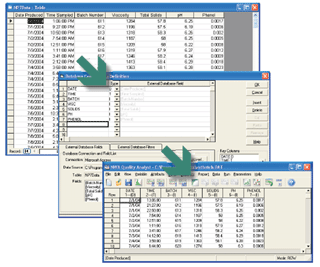

Database Connectivity

NWA Quality Analyst connects to any ODBC-compliant database, providing an automatic link to applications built on databases such as Microsoft Access, SQL Server, Oracle, and DB2. Database connections are defined by using Quality Analyst’s step-by-step point-and-click configuration or by creating custom SQL queries.

You can create dynamic SQL queries that prompt the user for input parameters such as date ranges, product codes, or lot numbers. All SPC information, including control limit shifts, Assignable Cause/Corrective Action, chart comments, and tagged data is automatically synchronized with the appropriate database record. Quality Analyst can also be configured to automatically read product specifications from remote databases using the same connection process. This allows for seamless integration with information systems such as SCM, ERP, MES, LIMS, HMI/SCADA, or Historians.

Connecting a Quality Analyst Data Set to an external database is straightforward. The user interface lets you select the database, data table, data fields, and even filters using familiar point-and-click methods. For more complex databases, Quality Analyst can connect to views, queries, or stored procedures, or you can embed your own SQL statements in the Quality Analyst data definition.

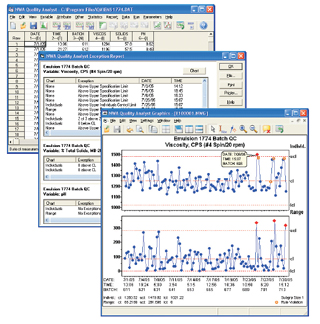

Exception Reporting

You can design any number of exception reports for each Data Set and provide a wide range of reports on SPC, specification, and pattern-rule violations.

The SPC chart associated with the exception is generated with the click of a button. In addition, you can combine multiple Exception Reports in Quality Analyst Run Files to produce a single report that scans quality data across a process or facility.

Assignable Cause/Corrective Action

Predefined Assignable Cause and Corrective Action text and ad hoc comments can be assigned to data points on any SPC chart. Multiple Assignable Cause/Corrective Action report formats plus Pareto analysis help support quality initiatives and compliance programs such as Six Sigma, ISO, and CAPA.

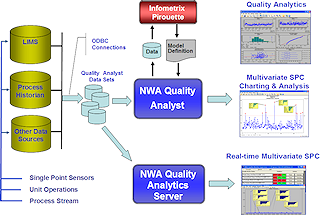

Multivariate Analysis

NWA and Infometrix have partnered to create fully integrated multivariate modeling and SPC charting that overcomes many of the barriers to the adoption of multivariate process monitoring and improvement techniques. NWA Quality Analyst’s new multivariate SPC module, NWA MvSPC™, combines with Infometrix Pirouette® to simplify the data-collection, model-building, and deployment process for off-line and real-time applications.

Model Building with Quality Analyst and Pirouette

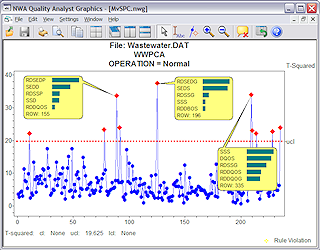

MvSPC™ provides:

• Fully integrated multivariate model building and SPC charting
• Easy connection to process and laboratory databases
• Simplified exchange of data and model definitions
• Hotelling’s T-squared and SPE charts
• One-click access to Contribution Charts, which identify important variables ranked by contribution
• Quality Analyst’s full range of analysis and reporting capabilities
• Real-time multivariate SPC using NWA Quality Analytics Server

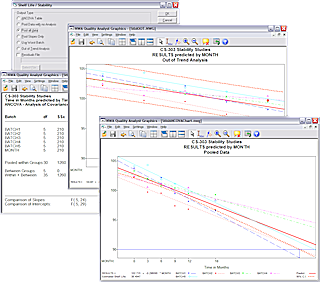

Stability/Shelf Life Analysis

NWA Stability Analytics™ delivers the statistical analysis, charting, and reporting required for routine product-lot stability studies as described in the FDA/ICH guidelines.

This new module lets our Life Sciences users perform standardized stability analysis using the same software that provides their laboratory method QA/QC charting, replacing what is typically a multi-application process, often performed by multiple staff.

NWA Stability Analytics™:

• Meets FDA/ICH guidelines for stability analysis using ANCOVA
• Connects directly to LIMS and other study-management systems
• Simplifies configuration and maintenance
• Standardizes workflow and reporting
• Provides comprehensive stability statistics and charting
  • ANCOVA statistics
  • Tests for poolability
  • Predictions using:
    • Pooled data
    • Pooled slope
    • Worst case
  • Out-of-trend detection
  • Residuals analysis

Comprehensive Stability Analytics
