產品功能亮點

60+支持格式

PDF到DWG轉換

2D和3D測量

專業編輯

多功能打印系統

功能詳細介紹

編輯圖紙

ABViewer一個全能的CAD平臺，可管理圖層、塊、尺寸以及文本樣式。

文件轉換（PDF到DWG）

ABViewer可將PDF文件格式轉換為矢量的DWG或DXF文件格式。需注意：PDF文件里可包含矢量和光柵圖形，不支持光柵圖像的矢量化。

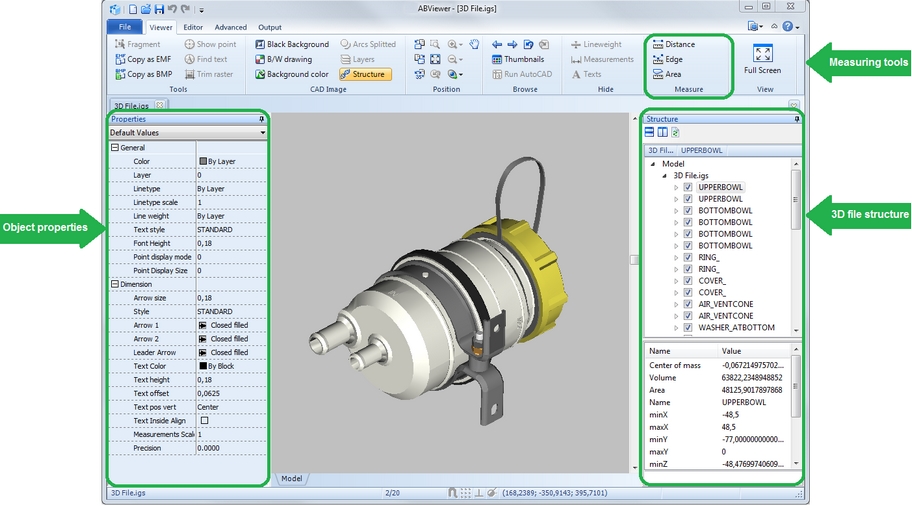

圖形測量

可支持長度、面積以及周長等的計算。

圖紙打印

ABViewer包含兩種打印工具，可通過繪圖和多頁打印設置打印預覽?？筛鶕?jù)文件格式選擇不同的打印工具。

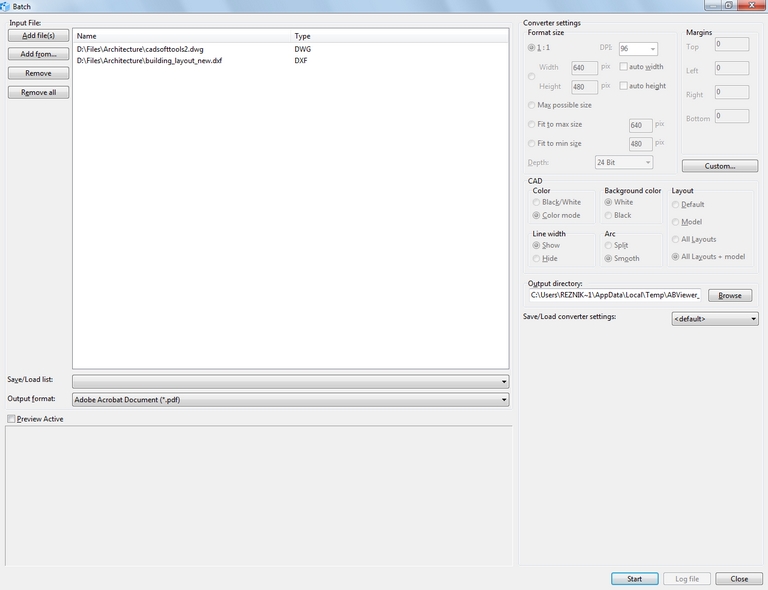

批量轉換

可支持文件的批量轉換?？墒褂门幚砻钸M(jìn)行文件批量轉換。

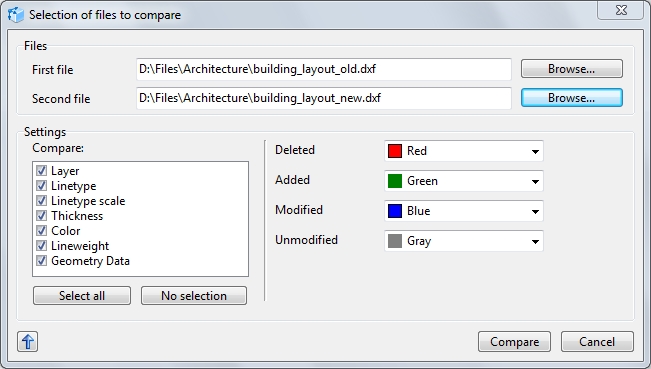

文件對比

ABViewer支持修改前后的對比。對修改的地方以不同顏色圖形標出。

圖紙標記

可通過特殊紅線對圖中需要標注或評論的地方進行注釋。

坐標關聯

可將其圖形坐標與地方坐標或其他坐標系統關聯。該功能在地圖和地理坐標參考方面很有幫助。

圖紙段處理

可通過Fragment命令將圖紙中選定的部分進行復制、保存、打印。

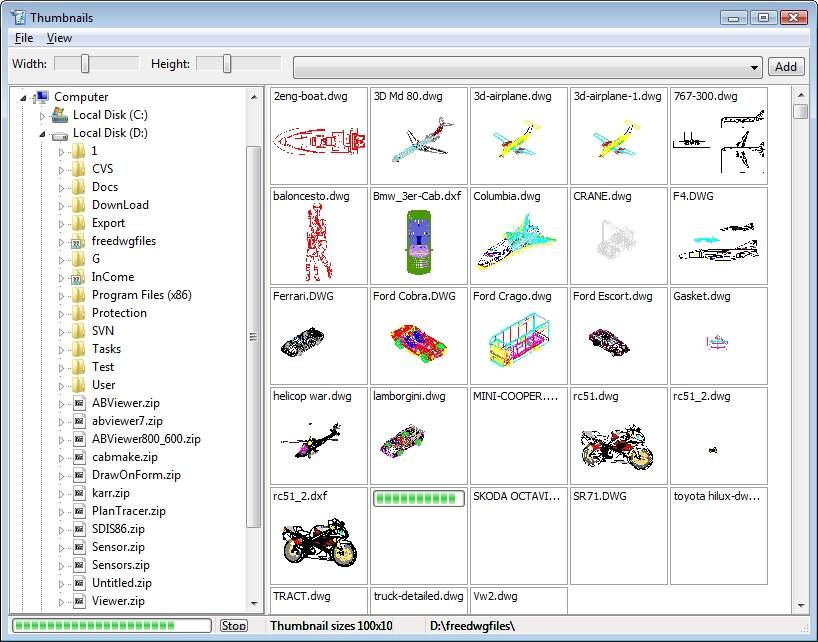

縮略圖

可通過縮略圖子程序搜素圖紙中類似名稱的圖紙。

版本對比

ABViewer	標準版	專業版	企業版

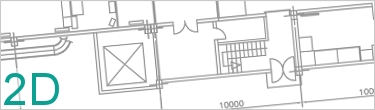

2D查看和轉換
平鋪打印

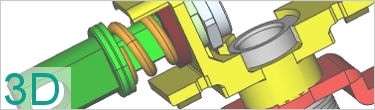

3D查看和轉換
編輯
紅線
DWG/DXF轉換為G-code
PDF轉換為DWG
批量轉換
批量打印
文件比較

典型客戶

• ABViewer:
  Saves my time

  • When making MS Word documents with CAD drawings pictures
  • When loading CAD files - DXF and DWG files loaded twice faster than in AutoCAD
  • When finding actual drawings - I keep them in Favorites
  • When replacing application - it can be in one diskette
  • I can print VERY BIG drawings on a small printer
  • I can adjust width of lines, color and DXF / DWG layers
  • I can print any part of the drawing independently of the whole drawing and set the size of the paper
  • Much cheaper than similar tools
  • View AutoCAD DWG , DXF and HPGL / HPGL2 Hewlett-Packard formats
  • DXF/DWG Layouts
  • more than 20 languages supported
  • DWG DXF Arcs and Circles can be drawn as smooth curves and saved to EMF as Metafile Arcs and Ellipses and can be zoomed after pasting to MS Word without quality loosing.
  • Clip Rectangle for printing and saving to the clipboard and to the file
  • Save to clipboard as BMP, EMF (WMF) (Clip Rectangle supported)
  • Save images and drawings to BMP, WMF, EMF, JPEG, GIF, DXF format (Clip Rectangle supported)
  • The World's fastest DXF/DWG loading
  • Viewing BMP, EMF, WMF, DWG, DXF, HGL, PLT, HG, PLO, JPEG, PCX, ICO, GIF formats
  • Scroll, manual and auto zoom, auto-window size and dragging features allow you to view your images the way you want
  • 3D DWG/DXF support
  • Structure tab for DWG, DXF, HPGL files
  • Color and Black-White mode for DWG, DXF, HPGL files
  • Layers window for DWG and DXF files. You can see the colors of the layers and turn on/off them.
  • Printing. ‘Tile’ feature allows you to print the image onto any quantity of papers with the scale you want. Predefined sizes for standard formats (US: A, B, C, D, E; ISO-A, DIN: A4, A3, A2, A1, A0). Any ‘tile’ can be printed independently of other ‘tiles’, so if one paper broken (printer problems) you can reprint the paper. Print Preview dialog allows you to make large images consist of number of simple A (A4) papers. (Clip Rectangle supported)
  • Favorites panel lets you organize images like in MS Internet Explorer favorites or in Nullsoft Winamp playlist
    Mouse wheel scaling like in AutoCAD.
  • Drag-and-drop support
  • Multilanguage support through INI-files (LNG). Customer can create new LNG-file and translate the application to language he wants without contacting to the developers.
  • Hatch, Splines and other DWG/DXF Entities
  • Easy and convenient user interface
  • Windows XP styles support
  • And a lot of other useful functions...
  • Brazilian Portuguese - translated by Fabio Campos
  • Bulgarian - translated by Nickola Vasilev
  • Czech - translated by Jiri Martinek, Martin Grepl
  • Danish - translated by Max Jens Jensen
  • Dutch - translated by Evert van Beek
  • English
  • German - translated by Olav Seyfarth
  • French - translated by Stephane Borel
  • Hungarian - translated by Kiss Karoly
  • Italiano - translated by Davide Unico
  • Korean - translated by Song, Woo
  • Norwegian - translated by Nils-Fredrik Pedersen
  • Polish - translated by Piotr Kramarczyk
  • Portuguese (Portugal) - translated by Fortunato
  • Romanian - translated by Lucian Crisan
  • Russian - translated by Evgeny Chuzhakin
  • Slovak - translated by Martin Grepl
  • Slovenian - translated by Karel Ferk
  • Spanish - translated by Federico Lуpez Bervejillo
  • Swedish - translated by Hans-Еke Larsson
  • Turkish - translated by Halil Gorentas
  • Ukrainian - translated by Anatoly Petrichenko
• Helps me in printing:
• Saves my money:
• Main Features:
• Languages supported:
